How does it work?
Phase switching in EV smart charging refers to the process of alternating between different phases of the electrical current supplied to the charger. Electrical grids typically run on three phases – each delivering power via a specific conductor at different times. By switching between these phases during the charging process, the system can optimize power usage, balance load demands, and reduce overall charging times. This flexibility ensures that energy distribution remains efficient, particularly when multiple EVs are charging simultaneously, without overwhelming the electrical infrastructure.
The difference between 1-phase and 3-phase charging
Before diving into the different types of phase switching in EV charging, it’s important to understand the basics of 1-phase and 3-phase charging.
1-Phase (single-phase) charging: This method uses a single phase of electrical power through a single conductor, providing lower charging power of up to 7.4 kilowatts (kW) and around 110 to 240 volts. This is sufficient for everyday home use but results in slower charging times. Most hybrid cars and small EVs can only use single-phase charging.
3-Phase (three-phase) charging: This method uses three phases of electrical power simultaneously through three conductors, delivering up to 22 kW and around 400 volts. This increased power capacity significantly reduces charging times compared to single-phase systems. Understanding the difference between 1-phase and 3-phase charging is key to optimizing EV charging. While 3-phase offers faster charging, switching between phases is crucial for balancing grid loads, adapting to available infrastructure, and enhancing energy efficiency. This flexibility ensures smoother, cost-effective charging and prevents overloading the system, combining the best of both methods.
Why phase switching is important
Three-phase charging has a power capacity, delivering more power to the EV to charge it more quickly. While this is often desirable, it can lead to large amounts of power being drawn in short amounts of time, leading to either grid overloads or high fees. As such, lowering the amount of power and switching the 1-phase charging at opportune times can lead to lower charging costs and ensure the most efficient use of energy.
Technical requirements of phase switching
Phase switching requires a wallbox charger that is capable of switching phases. The charger must also be connected to a compatible electrical control panel, which manages the distribution and regulation of electricity throughout the charging process.
Car, cable and connection requirements
Electric vehicle: The electric vehicle must be able to use three-phase charging. As mentioned above, some models, such as a Mazda MX-30 can only charge with 1-phase power.

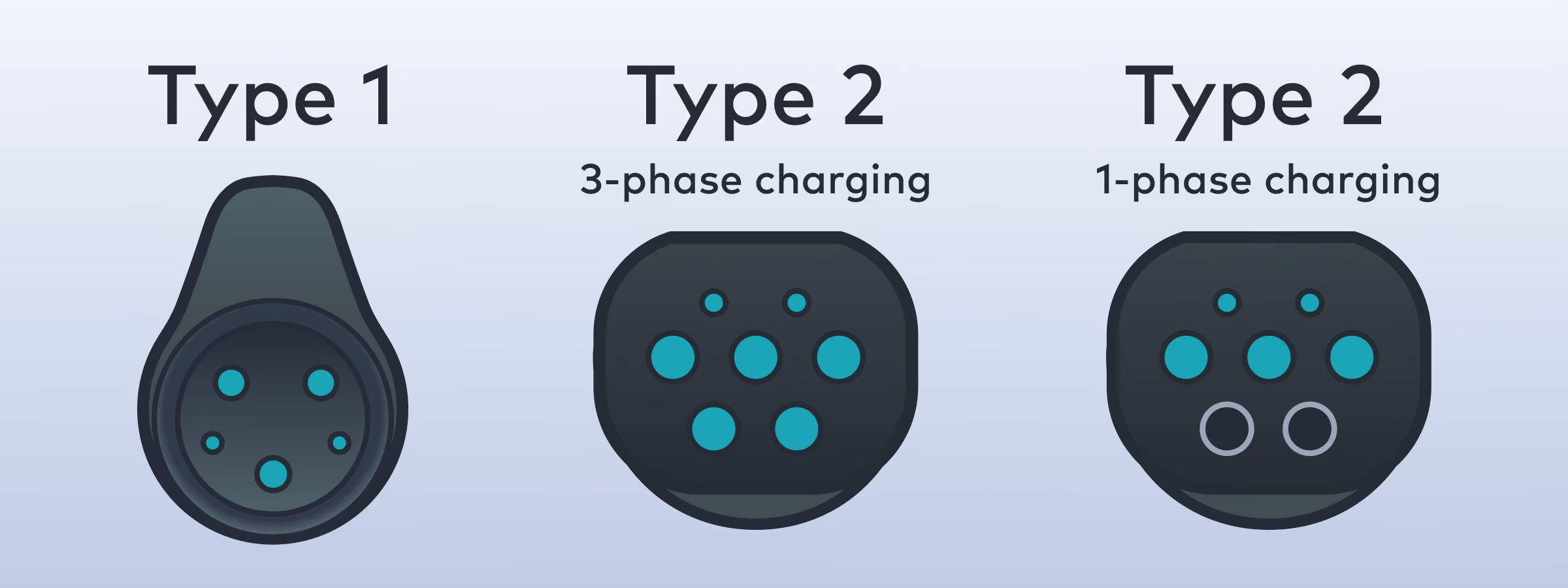

Electrical cable: Similarly, cables must be capable of transmitting 3-phase power. Type 1 cables support only 1-phase charging, while Type 2 cables support both 1-phase and 3-phase charging. To ensure that the Type 2 cable supports 3-phase charging, it is important to check the plug – if all seven holes have the same filling, it should support 3-phase, if the lower two holes are empty, it likely only supports 1-phase.
Household connection: In Europe, approximately 90% of homes in countries like Germany and the Netherlands are equipped with three-phase power, making this method ideal for fast EV charging in these areas. However, older homes or rural regions may still rely on 1-phase power, requiring upgrades for compatibility. This can be checked in the electricity meter – generally if the meter has a 220 / 230V connection, it is only capable of single-phase charging. Higher numbers, such as 380V or 400V support three phases.
Wallbox charger requirements
Three-phase charger: Just like cars can only support single-phase charging, so too can wallboxes. It is therefore vital to have an EV, charger and connection that is capable of three-phase charging.
Phase switching support: The wallbox charger must be equipped with phase switching capability, allowing it to dynamically switch between 1-phase and 3-phase charging modes.
Power management: The charger should intelligently manage the power distribution, optimizing the charging process based on available power and household energy consumption.
Electrical control panel compatibility
Phase switching compatibility: The electrical panel must be compatible with phase switching, supporting both 1-phase and 3-phase power inputs.
Load balancing: The panel should support load balancing to prevent overloading the grid during high-demand periods, particularly when switching between phases.
Types of phase switching in EV charging
Manual phase switching
Requires the user to manually select between 1-phase and 3-phase charging modes, typically through the charger’s interface.
Use case: Best for users who want control over the charging mode based on current power availability and needs.
Automatic phase switching
Automatically switches between 1-phase and 3-phase charging based on the real-time power availability from the grid or a renewable energy source like solar power.
Use Case: Ideal for homes with local renewable energy generation (e.g., solar panels) to maximize energy efficiency and reduce waste.
Adaptive phase switching
Similar to automatic switching but with advanced algorithms that predict and adapt to household power usage patterns, grid conditions and energy costs, dynamically optimizing the charging process.
Use case: Suited to smart homes with integrated Home Energy Management Systems (HEMS), providing the most efficient and cost-effective charging solution.
Benefits of phase switching
For businesses
As a business owner in the electric vehicle (EV) sector, integrating phase switching in smart charging brings several key benefits that enhance both operational efficiency and user experience.
Optimized energy consumption
Phase switching helps prevent strain on the grid by dynamically alternating between 1-phase and 3-phase power, reducing the risk of overloading during peak demand periods. Without switching, using 3-phase power continuously could create imbalances, especially in areas where the infrastructure is not fully equipped to handle constant high loads. By balancing the load across phases, energy consumption is stabilized, reducing strain on the grid. This leads to lower energy costs for businesses and more reliable charging operations, preventing potential outages or inefficiencies.
Faster charging speeds
Smart charging systems using phase switching can automatically detect the power availability and switch to the optimal phase to deliver the fastest possible charging times within given power constraints. This means users benefit from shortest charging periods, while keeping costs low, thus increasing customer satisfaction and maximizing vehicle uptime, which is essential for fleets and individual EV owners alike.
Cost savings for businesses
By switching between 1-phase and 3-phase power based on energy demand, businesses can leverage off-peak energy rates. Different phases allow chargers to dynamically adjust consumption in real-time, aligning usage with periods of lower demand, where energy is cheaper. This not only reduces operational costs but also prevents overloading the system during peak times.
Enhanced grid stability
Phase switching can distribute the energy demand across multiple phases, which mitigates the risk of localized grid overloading. By ensuring that the power grid is not overwhelmed, businesses avoid penalties for exceeding demand limits and contribute to overall grid stability.
Scalability and flexibility
For businesses managing large EV fleets, phase switching allows for scalable solutions. Smart charging hubs can dynamically allocate power across multiple vehicles without requiring significant infrastructure upgrades, providing flexibility as EV adoption grows.
Reduced carbon footprint
By optimizing energy use and switching between phases based on the most efficient delivery method, businesses reduce energy waste, indirectly lowering their carbon footprint. This is a key benefit for companies aiming to enhance their sustainability efforts.
Future-proofing
As EV infrastructure evolves, phase switching ensures compatibility with future energy solutions. It provides a flexible framework that can accommodate advancements in renewable energy integration, making businesses more adaptable to future market changes.
For end users
Flexible charging
Phase switching enables users to charge their EVs efficiently regardless of whether their power supply comes from a 1-phase or 3-phase connection.
Maximized renewable energy use
Users can make the most of their solar power or other renewable sources by switching between 1-phase and 3-phase charging based on energy production and availability. This dynamic adjustment ensures that surplus solar energy is used efficiently. By optimizing phase switching to match solar generation, users can achieve greater energy independence and cost savings.
Reduced charging time
By switching to 3-phase charging when power is abundant, users can significantly reduce the time needed to charge their vehicles, improving convenience and usability.
Cost savings
Phase switching allows users to take advantage of off-peak electricity rates, ensuring that energy is drawn efficiently from the grid. This helps in minimizing costs, especially in areas with variable pricing structures, thus making EV ownership more economical over time.
Increased flexibility
Phase switching offers compatibility with different power sources, making it easier for EV owners to charge their vehicles at various locations, whether at home or public stations. This flexibility is essential for long-distance travel and different charging environments.
Applications of phase switching in different business scenarios
Phase switching in electric vehicle (EV) charging offers unique applications across various business scenarios, particularly in sectors that demand efficient energy management and smart charging solutions. Here’s how phase switching can benefit different business contexts:
Fleet management and corporate electric vehicle charging stations (EVCS)
For businesses managing large fleets, phase switching optimizes the charging process by dynamically shifting between 1-phase and 3-phase charging based on energy demand and availability. This reduces energy costs and prevents overloading the grid during peak times, which is crucial for fleet depots where multiple EVs charge simultaneously. Fleet operators can also better align charging schedules with the cheapest energy rates, maximizing operational efficiency.
Commercial properties and public charging networks
Commercial properties, such as office parks or public charging stations, can use phase switching to manage energy loads more effectively. This flexibility allows property managers to offer both fast and slow charging options depending on the user's needs, improving customer experience. By integrating phase switching with smart energy management, businesses can avoid costly grid upgrades and reduce peak demand charges, ensuring the infrastructure is future-proofed as EV adoption grows.
Industrial and utility-scale smart charging solutions
At an industrial or utility level, phase switching plays a critical role in integrating renewable energy sources (RES) like solar or wind. By adjusting the charging phases dynamically, businesses can optimize the use of available renewable energy and reduce reliance on the grid. This is particularly beneficial for utilities seeking to balance the energy supply while minimizing the need for additional grid infrastructure investments.
In Europe, smart charging strategies, including phase switching, are essential for managing the growing demand for EVs while integrating RES. By 2030, EV-related electricity consumption is projected to increase from 9 terrawatt hours to 165 terrawatt hours, accounting for around 6% of total energy demand in the EU. Smart charging can help reduce grid strain, especially during peak loads.
Overall, phase switching allows for more flexible, cost-effective and sustainable EV charging, making it a critical tool in large-scale energy management. For businesses in fleet management, commercial properties and industrial settings, this technology offers a pathway to smarter and more efficient operations.
Challenges and considerations for implementing phase switching
Implementing phase switching in electric vehicle charging indeed has numerous benefits, but it also comes with specific challenges and considerations that businesses and energy managers need to address:
Infrastructure compatibility
Not all existing electrical infrastructure is compatible with phase switching technology. For phase switching to work effectively, both the EV charger and the electrical grid must support both 1-phase and 3-phase power. Upgrading infrastructure can be costly and time consuming.
Before implementing phase switching, assess the current infrastructure to determine where it can handle the dynamic load shifts that phase switching requires. Upgrading the electrical panel wiring may be necessary.
Cost of implementation
While phase switching can optimize energy usage and reduce long-term costs, the initial investment in phase-switching-capable EV chargers and potential infrastructure upgrades can be significant.
Businesses need to weigh the upfront costs against the long-term savings in energy management. Conducting a detailed cost-benefit analysis is essential to justify the investment.
Grid impact and management
Implementing phase switching can lead to unintended stress on the grid if not managed holistically or intelligently. Rapid phase switching can, for example, cause voltage fluctuations and other issues that may affect grid stability. Thus these factors must also be considered to ensure the optimal number of phase switches.
Collaboration with utility providers is crucial to ensure that phase switching is integrated into a broader smart grid strategy. This includes load balancing and real-time monitoring to prevent negative impacts on the grid.
Complexity in energy management
Managing phase switching requires sophisticated Energy Management Systems (EMS) that can dynamically adjust the load and switch phases based on real-time data. Implementing advanced energy management systems (EMS) or integrating a phase switching solution into a Home Energy Management Systems (HEMS) is necessary to automate and optimize phase switching in a household and avoid possible technical issues. This ensures that the system responds effectively to changes in power demand and availability.
Regulatory and compliance issues
Depending on the region, there may be regulatory hurdles related to phase switching and its impact on the grid. Compliance with local electrical codes and regulations is mandatory.
Engaging early with local regulatory bodies is important to streamline the process and avoid delays. This may involve obtaining special permits or adhering to specific guidelines.
User and technician training
Phase switching introduces a level of complexity that may be unfamiliar to both end users and technicians. Incorrect use or installation can lead to inefficiencies or even safety hazards.
These challenges underscore the importance of careful planning, investment in compatible technology and collaboration with key stakeholders when implementing phase switching in EV charging infrastructures.
Success stories
Mennekes, a leading provider of electric vehicle (EV) charging solutions, successfully implemented phase switching technology in their charging stations using XENON, gridX’s sophisticated energy management platform designed to optimize power distribution and grid interaction. This collaboration enabled Mennekes to offer more efficient and flexible charging options to their customers, particularly in environments with varying energy demands.
Integrating Mennekes charging stations with XENON allows dynamic switching between 1-phase and 3-phase power, optimizing energy usage based on real-time availability of photovoltaic (PV) power and grid conditions. This not only enhances the efficiency of the charging process but also reduces overall energy costs for users. The system’s ability to adjust to different energy needs ensures that EVs can be charged quickly when high power is available, while still being able to charge at a lower pace at times of lower availability of PV power. This ensures users’ a fast and seamless charging experience without overloading the grid.
The success of this implementation highlights the power of smart energy management in EV charging, allowing Mennekes to provide a reliable and adaptable charging solution that meets the diverse needs of modern EV drivers. This has positioned Mennekes as a forward-thinking leader in the EV charging industry, committed to sustainable and efficient energy solutions.
Expert insights on the future trends in phase switching and smart charging
The future of phase switching and smart charging is set to be defined by increasingly sophisticated energy management systems that respond dynamically to both the needs of electric vehicles (EVs) and the grid. From an e-mobility perspective, the focus will be on optimizing the charging experience for EV owners while ensuring that charging infrastructure can adapt to the rapid growth in EV adoption.
Akash Roshan, Senior Product Manager for eMobility B2B at gridX, highlights that “as EV adoption continues to surge, the demand for flexible and scalable charging solutions will become paramount. Phase switching will play a critical role in this by enabling charging stations to dynamically adjust their power draw based on real-time conditions, ensuring that EVs can charge efficiently without placing undue strain on the grid.”
This trend is also reflected in the development of smart HEMS. Robert Matjeschk, gridX’s Product Manager for the HEMS module Energy Optimizer, notes, “HEMS will increasingly integrate phase switching capabilities to not only manage the household’s energy consumption but also to enable efficient EV charging in a wide range of energy availability. This will ensure that EVs are charged using the most cost-effective and environmentally friendly power available, while also protecting the home’s electrical infrastructure from overload.”
Looking ahead, the integration of artificial intelligence (AI) and machine learning into these systems will further enhance their ability to predict and respond to energy demands. This will allow for even more precise control over when and how EVs are charged, ultimately leading to a more sustainable and reliable energy ecosystem.
